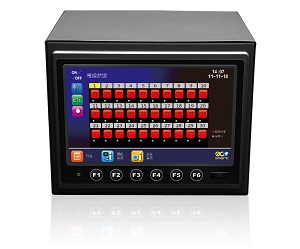

ECO-3 Energy Controller





What is ECO-3 ?
Does ECO-3 need to be installed with ECO-IR?



ECO-3 |

ECO-3 is manager of ECO-IR can control serval sets of ECO-IR and know
air-conditioning states in each area.
It is suitable for installing at office, school, hospital, community and so on.

Management

 manager can know air-conditioning states in each area and remote control.
 It also avoid energy waste, for example, temperature setting is too low or air
 conditioning isn't turned off in non-work periods.



Load shedding

 ECO-5 can load shedding with ECO-3.
 ECO-5 can control ECO-3 to turn A/C cycle suspend mode by the internet, avoiding
 contract capacity.



Humanizing Interface|

All types of ECO-3 are touch screen
ECO-3 icons was designed simple and visual
recognition in mind.



Multiple types of ECO-3

 The tyeps of ECO-3 have been connected 4, 8, 30 sets of ECO-IR.
 It also can be customize connection over 30 sets of ECO-IR.
 We do our utmost to offer clients best energy-saving products.



  Instance of ECO-3

   Certain motorcycle factory have about 60 packaged air conditioners with ECO-IR
   Monitor room has 2 sets of ECO-3 and multiple ECO-5 to monitor and manage.

   Management : A/C in each area can be monitor and control if operation isn't normal.
   Load shedding : ECO-3 can be connected with ECO-5. If electricity demand will
   over contract capacity, ECO-5 can control ECO-3 to load shedding in a short time.

> TOP







Dimension

200mm x 161.5mm x 150mm±1mm

Display

7-inch TFT Color touch-screen,

LED back light, 800 X 480 pixel.

Communication Interface

LAN1:Ethernet (Default)

LAN2:Ethernet (Option, or RS485)

Power Supply

100~ 240VAC 50/60Hz

(Built-in 5A Fuse)

Power Consumption

5°C~55°C

Storage Temperature

-20°C~60°C









Dimension

130mm x 105mm x 35mm±1mm

Display

4.3-inch TFT Color touch-screen,

LED back light, 480 X 272 pixel.

Communication Interface

LAN1:RJ-45

LAN2:Ethernet (Option, or RS485)

Power Supply

24VDC

Power Consumption

5°C~55°C

Storage Temperature

-20°C~60°C

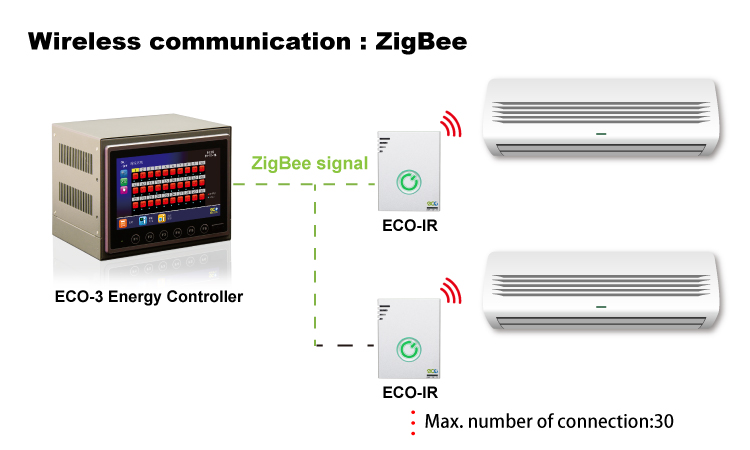

structure eco-ir

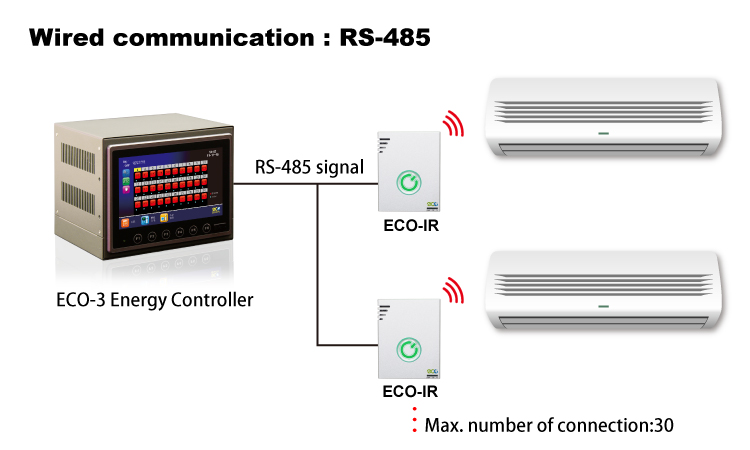

structure eco-ir


structure eco-ir
